Wholesale Market Survey of Fresh Produce: Wholesale Volumes

1 Data

library(readxl)
library(dplyr)
library(arrow)
library(DT)
library(ggplot2)
library(scales)
library(gghighlight)
library(ggthemes)
library(ggsci)
library(ggrepel)
library(ggtext)

outdir <- "../data/wholesale"
figdir <- "../fig"
dir.create(outdir, showWarnings = FALSE, recursive = TRUE)
dir.create(figdir, showWarnings = FALSE)

outdirestat <- "../data/e-stat/青果物卸売市場調査"
dir.create(outdirestat, showWarnings = FALSE, recursive = TRUE)

1.1 Domestic Kiwifruit

青果物卸売市場調査 / 長期累年青果物卸売市場調査

キウイフルーツ(昭和60年～令和５年)

総数
- 数量（t）
- 価額（千円）
- 価格（円／kg）

https://www.e-stat.go.jp/stat-search/files?stat_infid=000040208655

dir.create(file.path(outdirestat, "1985-2023"), showWarnings = FALSE, recursive = TRUE)

xlsx_url <- "https://www.e-stat.go.jp/stat-search/file-download?statInfId=000040208655&fileKind=0"
xlsx_file <- "g002c-002-054-000-000.xls"
file_path <- file.path(outdirestat, "1985-2023", xlsx_file)

if (!file.exists(file_path)) {
  download.file(xlsx_url, file_path)
}

df_domestic <- read_excel(file_path, skip = 5) |>
  filter(!is.na(`...1`)) |>
  select(1:4) |>
  mutate(year = as.integer(sub(".*\\((\\d{4})\\).*", "\\1", `...1`))) |>
  select(-1) |>
  setNames(c("quantity", "value", "price", "year")) |>
  mutate(across(c(quantity, value, price), ~ as.integer(gsub("…", "", .))))

1.2 Imported Kiwifruit

青果物卸売市場調査 / 長期累年青果物卸売市場調査

輸入キウイフルーツ(昭和60年～令和５年)

総数
- 数量（t）
- 価額（千円）
- 価格（円／kg）

https://www.e-stat.go.jp/stat-search/files?stat_infid=000040208666

dir.create(file.path(outdirestat, "1985-2023"), showWarnings = FALSE, recursive = TRUE)

xlsx_url <- "https://www.e-stat.go.jp/stat-search/file-download?statInfId=000040208666&fileKind=0"
xlsx_file <- "g002c-002-065-000-000.xls"
file_path <- file.path(outdirestat, "1985-2023", xlsx_file)

if (!file.exists(file_path)) {
  download.file(xlsx_url, file_path)
}

df_imported <- read_excel(file_path, skip = 5) |>
  filter(!is.na(`...1`)) |>
  select(1:4) |>
  mutate(year = as.integer(sub(".*\\((\\d{4})\\).*", "\\1", `...1`))) |>
  select(-1) |>
  setNames(c("quantity", "value", "price", "year")) |>
  mutate(across(c(quantity, value, price), ~ as.integer(gsub("…", "", .))))

1.3 Merge

df <- bind_rows(
  df_domestic |> mutate(country = "Domestic Kiwifruit"),
  df_imported |> mutate(country = "Imported Kiwifruit")
)

df$country <- factor(df$country, levels = c("Imported Kiwifruit", "Domestic Kiwifruit"))

write.table(df, file = file.path(outdir, "wholesale_1985-2023.csv"), sep = ",", row.names = FALSE)
write_parquet(df, sink = file.path(outdir, "wholesale_1985-2023.parquet"))

1.4 Read the Data

df <- read.csv(file.path(outdir, "wholesale_1985-2023.csv"), header = TRUE)
df <- read_parquet(file.path(outdir, "wholesale_1985-2023.parquet"))

2 Tables

DT::datatable(
  df, rownames = FALSE, filter = 'top',
  extensions = 'Buttons',
  options = list(
    pageLength = 10,
    dom = 'Blfrtip',
    buttons = list(
      c('csv', 'excel'),
      I('colvis')
    )
  )
) |>
  DT::formatCurrency(grepl("quantity|value|price", names(df)), currency = "", interval = 3, mark = ",", digits = 0)

df <- na.omit(df)

3 Figures

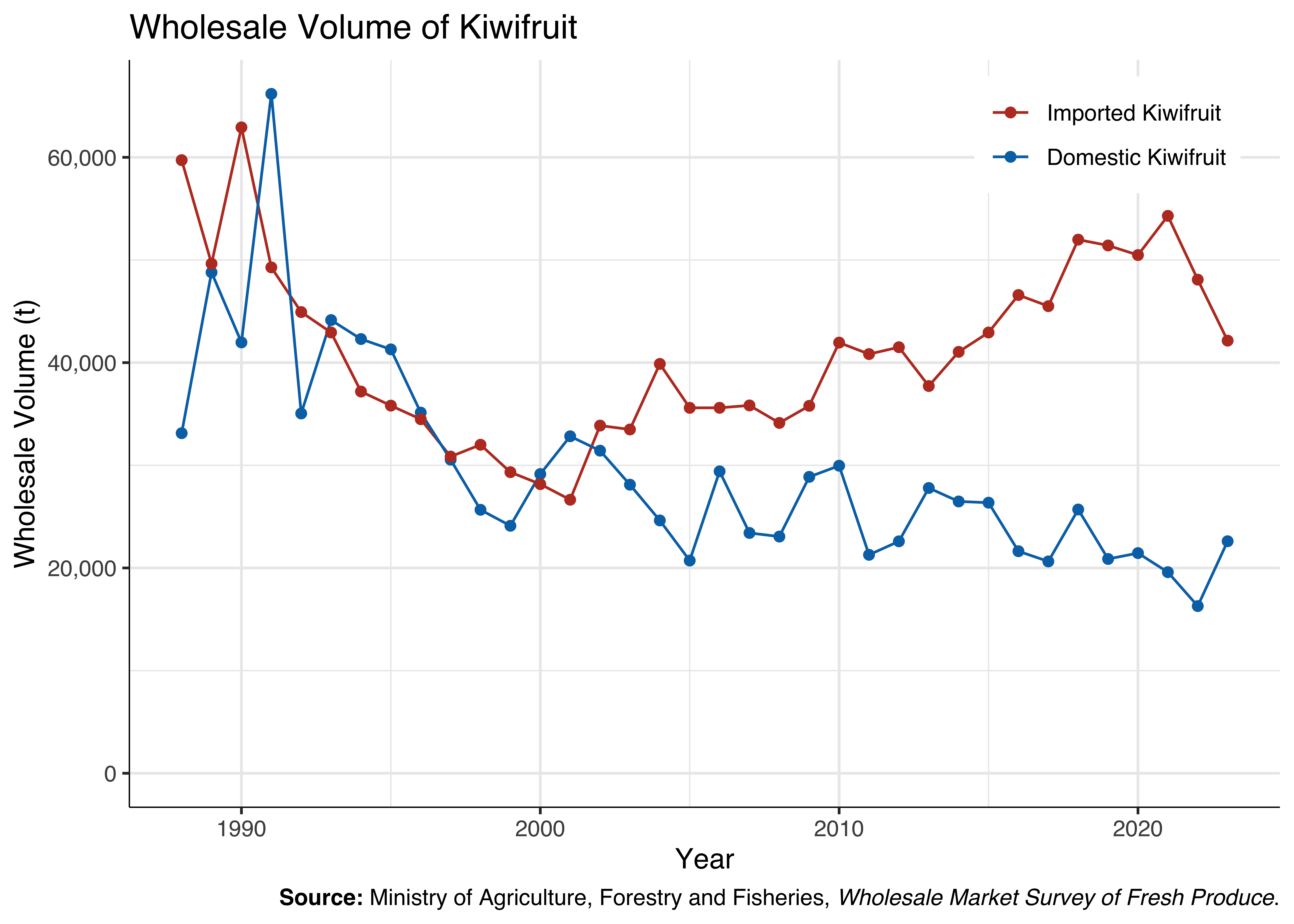

3.1 Wholesale Volume

p <- ggplot(data = df, aes(x = year, y = quantity, group = country, color = country)) +
  geom_line() +
  geom_point() +
  scale_y_continuous(limits = c(0, NA), labels = scales::label_comma()) +
  labs(
    title = "Wholesale Volume of Kiwifruit",
    x = "Year",
    y = "Wholesale Volume (t)",
    caption = "**Source:** Ministry of Agriculture, Forestry and Fisheries, _Wholesale Market Survey of Fresh Produce_.",
    color = NULL
  ) +
  theme_bw() +
  scale_color_nejm() +
  theme(
    panel.border = element_blank(),
    axis.line.x = element_line(linewidth = .25),
    axis.line.y = element_line(linewidth = .25),
    text = element_text(family = "Helvetica"),
    plot.caption = element_markdown()
  ) +
  guides(fill = guide_legend(title = NULL)) +
  theme(
    legend.position = c(.85, .9),
    text = element_text(family = "Helvetica")
  )

ggsave("wholesale_volume_line.pdf", plot = p, device = cairo_pdf, path = figdir)
p

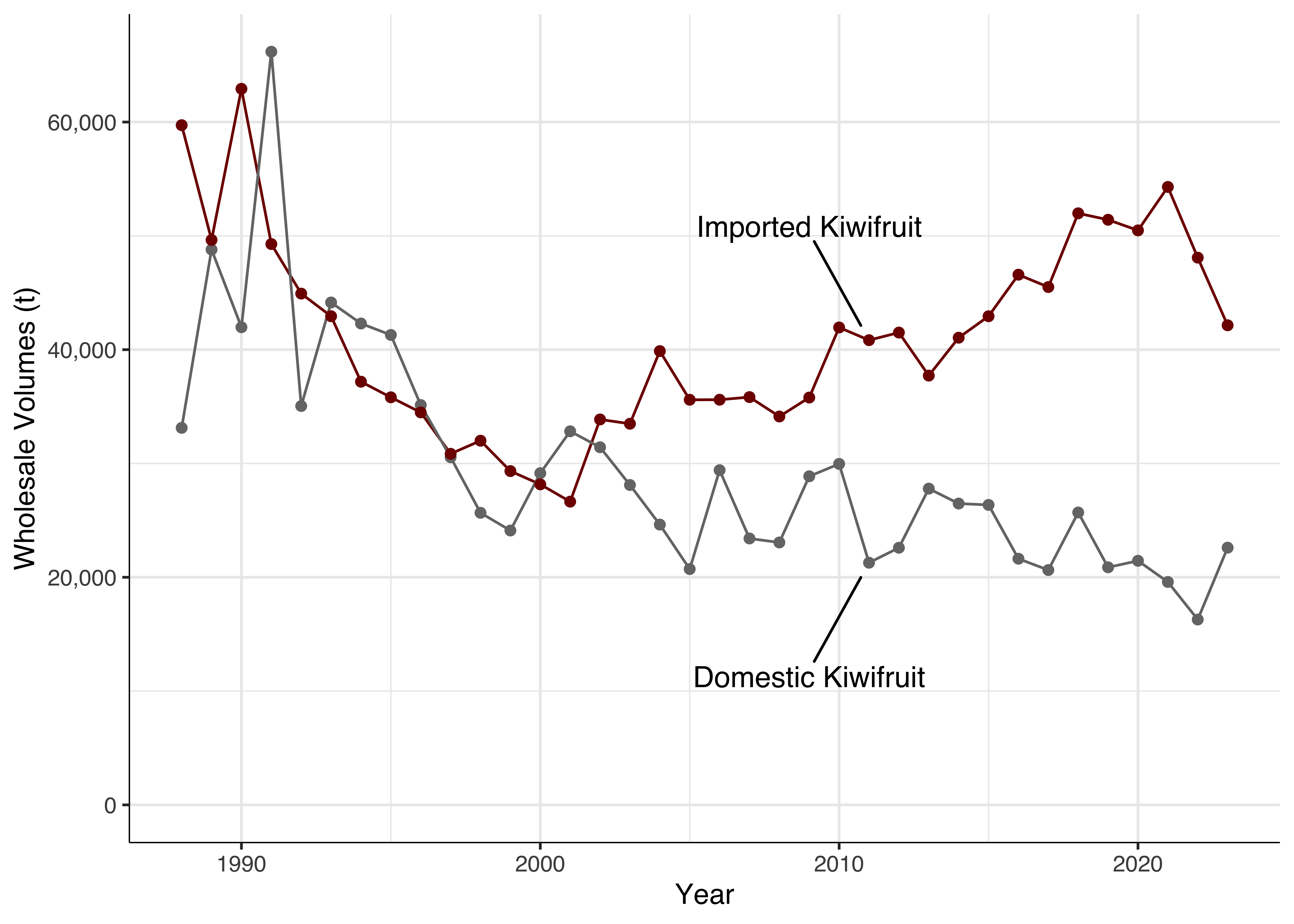

label_data <- df |>
  filter(year == 2011, .by = country)

p <- ggplot(data = df, aes(x = year, y = quantity, group = country, color = country)) +
  geom_line() +
  geom_point() +
  scale_y_continuous(limits = c(0, NA), labels = scales::label_comma()) +
  geom_text_repel(data = label_data, aes(label = country),
                  size = 4,
                  color = "black",
                  family = "Helvetica",
                  segment.color = "black",
                  point.padding = 1,
                  nudge_x = -2,
                  nudge_y = c(-10000, 10000),
                  segment.curvature = 0,
                  segment.ncp = 0) +
  labs(
#   title = "Wholesale Volume of Kiwifruit",
    x = "Year",
    y = "Wholesale Volumes (t)",
#    caption = "**Source:** Ministry of Agriculture, Forestry and Fisheries, _Wholesale Market Survey of Fresh Produce_.",
  ) +
  theme_bw() +
  scale_color_uchicago() +
  theme(
    legend.position = "none",
    panel.border = element_blank(),
    axis.line.x = element_line(linewidth = .25),
    axis.line.y = element_line(linewidth = .25),
    text = element_text(family = "Helvetica")
  )

ggsave("figure3.pdf", plot = p, device = cairo_pdf, path = figdir)
ggsave("figure3.png", plot = p, path = figdir, dpi = 600)
p

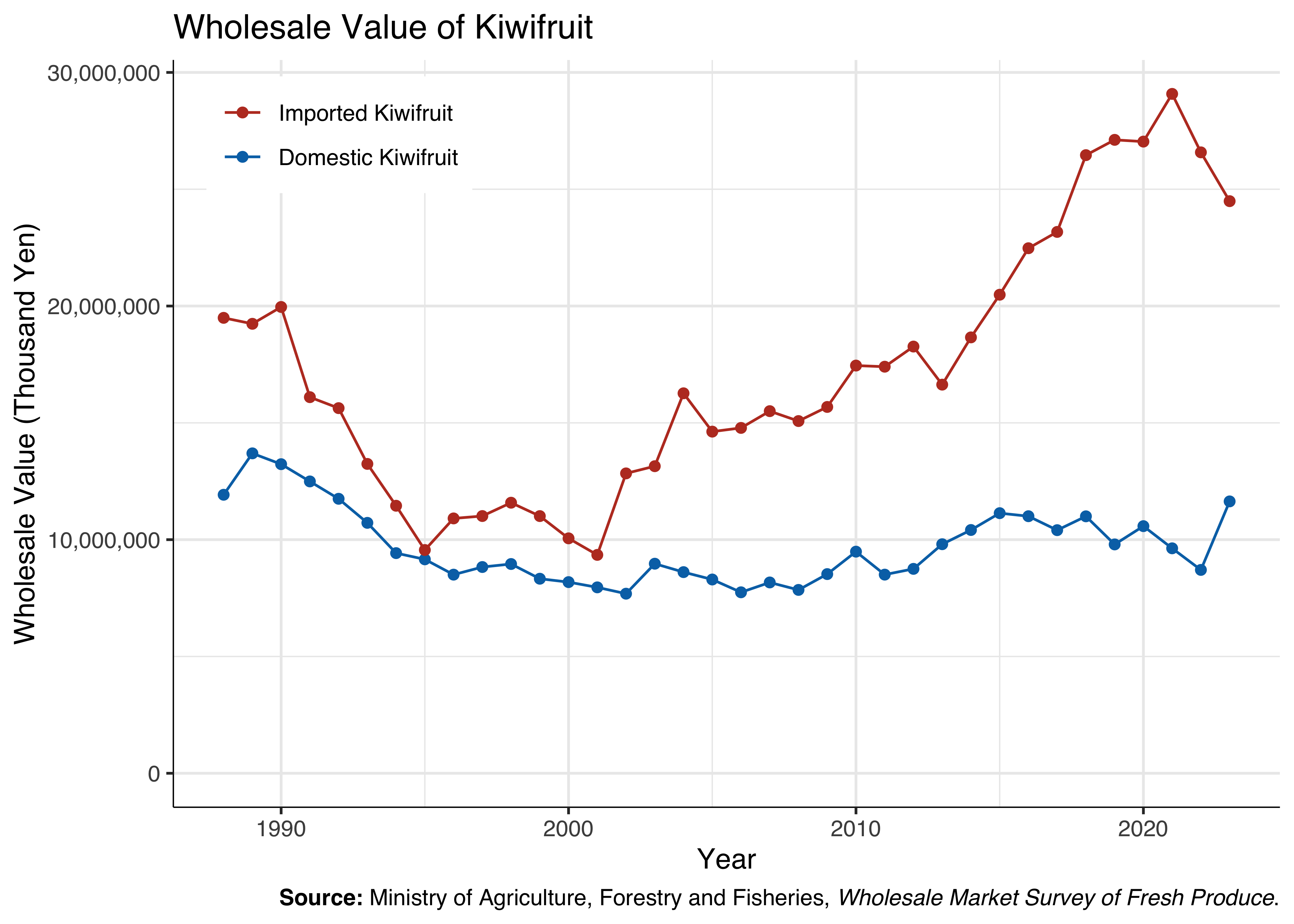

3.2 Wholesale Value

p <- ggplot(data = df, aes(x = year, y = value, group = country, color = country)) +
  geom_line() +
  geom_point() +
  scale_y_continuous(limits = c(0, NA), labels = scales::label_comma()) +
  labs(
    title = "Wholesale Value of Kiwifruit",
    x = "Year",
    y = "Wholesale Value (Thousand Yen)",
    caption = "**Source:** Ministry of Agriculture, Forestry and Fisheries, _Wholesale Market Survey of Fresh Produce_.",
    color = NULL
  ) +
  theme_bw() +
# paletteer::scale_fill_paletteer_d("colorblindr::OkabeIto") +
  scale_color_nejm() +
  theme(
    panel.border = element_blank(),
    axis.line.x = element_line(linewidth = .25),
    axis.line.y = element_line(linewidth = .25),
    text = element_text(family = "Helvetica"),
    plot.caption = element_markdown()
  ) +
  guides(fill = guide_legend(title = NULL)) +
  theme(
    legend.position = c(.15, .9),
    text = element_text(family = "Helvetica")
  )

ggsave("wholesale_value.pdf", plot = p, device = cairo_pdf, path = figdir)
p

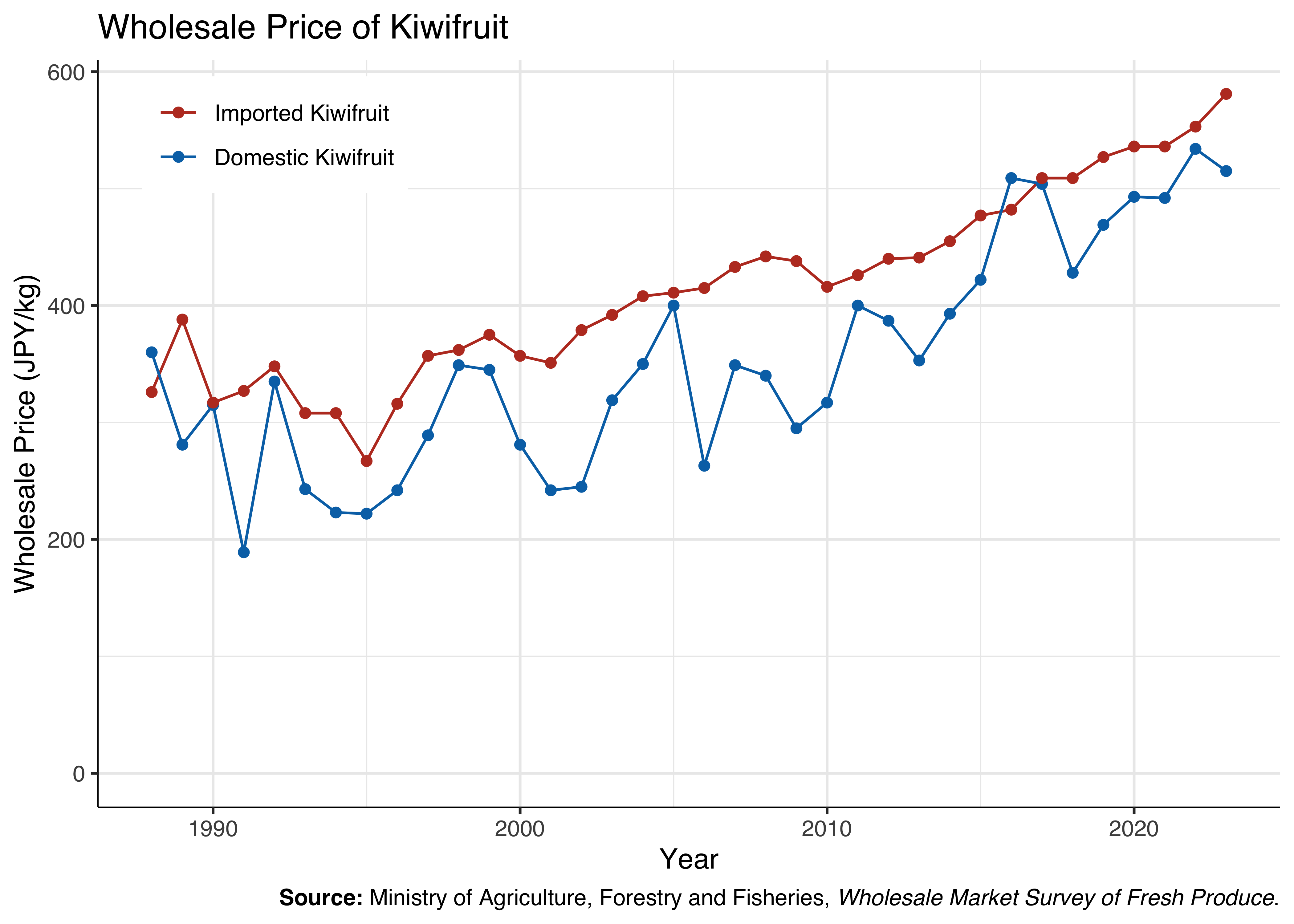

3.3 Wholesale Price

p <- ggplot(data = df, aes(x = year, y = price, group = country, color = country)) +
  geom_line() +
  geom_point() +
  scale_y_continuous(limits = c(0, NA), labels = scales::label_comma()) +
  labs(
    title = "Wholesale Price of Kiwifruit",
    x = "Year",
    y = "Wholesale Price (JPY/kg)",
    caption = "**Source:** Ministry of Agriculture, Forestry and Fisheries, _Wholesale Market Survey of Fresh Produce_.",
    color = NULL
  ) +
  theme_bw() +
# paletteer::scale_color_paletteer_d("colorblindr::OkabeIto") +
  scale_color_nejm() +
  theme(
    panel.border = element_blank(),
    axis.line.x = element_line(linewidth = .25),
    axis.line.y = element_line(linewidth = .25),
    text = element_text(family = "Helvetica"),
    plot.caption = element_markdown()
  ) +
  guides(fill = guide_legend(title = NULL)) +
  theme(
    legend.position = c(.15, .9),
    text = element_text(family = "Helvetica")
  )

ggsave("wholesale_price.pdf", plot = p, device = cairo_pdf, path = figdir)
p
